Profile Projector

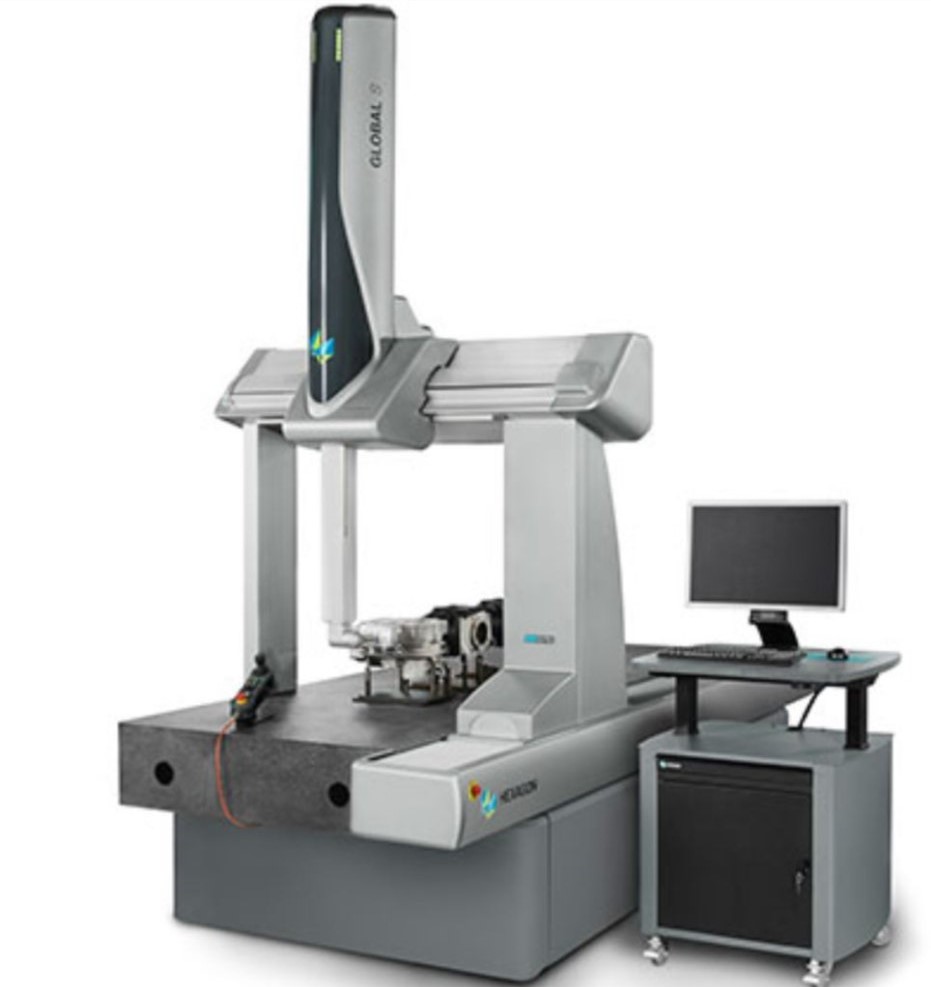

Backed by a competent team of professionals, we are able to supply supreme quality CMM Spectrum Model that is mainly used in machine shops, quality assurance departments, and occasionally on assembly shop floors. The product provided by us is manufactured at a well-developed production unit, equipped with all ultra-modern technology using quality approved raw materials by our vendors.

Read More

Horizontal Profile Projector

Our enterprise has gained immense recognition in the industry by offering an excellent quality Horizontal Profile Projector. Our offered projector finds usage in electrical, general engineering and automobile industry to perform routine inspection.

Read More

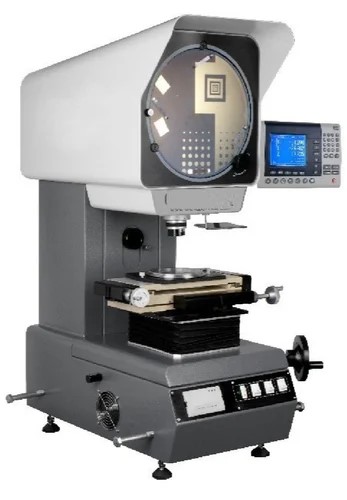

Industrial Profile Projectors

Industrial profile projectors are designed to meet the rigorous demands of large-scale manufacturing. These projectors are highly versatile and can be customized for various applications.

Read More

Hot deals

Horizontal Profile Projector
Industrial Profile Projectors
Shadow Graph Profile

R B Metrology Specializes in High-Quality Profile Projectors

Profile projectors are essential optical instruments used in various industries for precise measurement and inspection of manufactured parts. At R B Metrology, we specialize in providing high-quality profile projectors, including Horizontal Profile Projectors, Industrial Profile projectors, and Shadow Graph Profile projectors. Let’s explore their features, applications, and benefits in detail.

A Profile Projector is a precision optical device that magnifies the image of a workpiece onto a screen. It enables detailed inspection and measurement of intricate components, ensuring they meet exact specifications. Profile projectors are invaluable tools for industries such as manufacturing, engineering, automotive, and aerospace, where precision is critical.

R B Metrology offers robust and reliable profile projectors that meet the highest industrial standards, making them suitable for various quality assurance tasks.

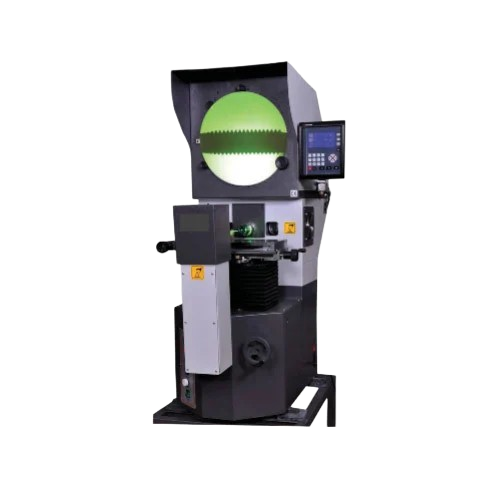

R B Metrology Horizontal Profile Projector

A Horizontal Profile Projector projects the image of a workpiece horizontally onto a screen. This type of projector is ideal for inspecting larger and heavier components that cannot be easily positioned vertically.

  • Robust Build: Horizontal profile projectors are designed to handle heavy-duty components.
  • Large Stage: They provide ample space for bigger workpieces, ensuring accurate inspection.
  • High Precision: Equipped with advanced optics and precise measurement tools.
  • Inspection of gears, shafts, and heavy industrial parts.
  • Measuring the dimensions and contours of large components.
  • Ensuring the alignment and orientation of intricate shapes.

At R B Metrology, our horizontal profile projectors are engineered for durability and precision, making them a reliable choice for industries dealing with substantial parts.

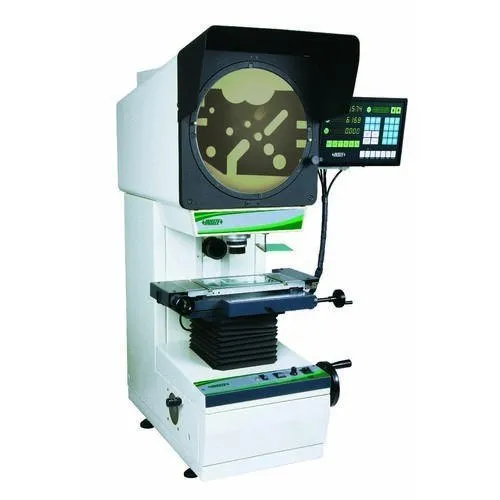

R B Metrology Industrial Profile Projectors

Industrial profile projectors are designed to meet the rigorous demands of large-scale manufacturing. These projectors are highly versatile and can be customized for various applications.

  • Advanced Optics: High magnification power for detailed analysis.
  • Durable Design: Built to withstand challenging industrial environments.
  • Versatile Applications: Compatible with a wide range of components and materials.
  • Inspection of mass-produced components for quality assurance.
  • Verifying the uniformity of parts in industries like aerospace and automotive.
  • Analyzing intricate profiles in engineering and tool manufacturing

R B Metrology’s industrial profile projectors deliver exceptional performance, enabling businesses to maintain stringent quality control.

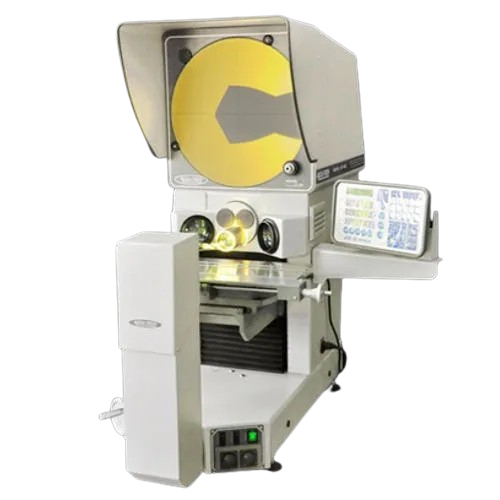

R B Metrology Shadow Graph Profile Projectors

The Shadow Graph Profile Projector, also known as an optical comparator, is a specialized device that creates a shadow or silhouette of a workpiece. It is widely used for precise measurement of shapes and dimensions.

  • High Accuracy: Perfect for measuring minute details with precision.
  • Illumination: Uses light sources to cast sharp shadows for accurate inspection
  • Screen Display: Features a clear and calibrated screen for detailed analysis.
  • Measuring small, complex components like springs, threads, and grooves.
  • Comparing profiles against master templates.
  • Ensuring dimensional accuracy of intricate parts.

At R B Metrology, our shadow graph profile projectors offer unparalleled accuracy, making them essential for industries where even the smallest deviation can have significant consequences.

Co-ordinate Measuring Machine

Offering a wide range of quality products like 3D C.M.M. (Co- ordinate Measuring Machine), Portable Arm C.M.M., Roundness Tester, Contour Graph, Profile Projector, Height Master, etc.
RB Metrology is a renowned company for latest technology measuring instruments. Established in the year 2008 at New Delhi, we are known as a reputed trader and supplier of Dimensional Metrology Equipment like CMM, Portable Arm CMM, Roughness Tester, Roundness Tester, Contour Graph, Video Measuring Machine, Profile Projector, Height Master and, White Line Scanners. Apart from that we are dealing in Air Dryers, Bench Centers, Surface Plates, Spectrometer, Universal Testing Machines, Cam / Crank Shaft Measuring Machines, Hardness Tester, VMC, CNC Turning Center and Digital Read out Systems. The products stand out in the market for their high functional features, precise application suitability and long service life.

Why Choose R B Metrology for Profile Projectors?

R B Metrology is a trusted supplier of high-quality profile projectors in India. Here’s why our products stand out:

  • 1. Precision Engineering: All our profile projectors are built with advanced technology to ensure maximum accuracy.
  • 2. Wide Range: We offer a variety of models, including horizontal, industrial, and shadow graph profile projectors, catering to diverse industrial needs.
  • 3. Durability: Our projectors are designed for long-term performance, even in challenging environments.
  • 4. Expert Support: We provide expert guidance to help you choose the right profile projector for your specific requirements.

Benefits of Using Profile Projectors

  • 1. Enhanced Accuracy: Profile projectors allow precise measurement and analysis, ensuring components meet exact specifications.
  • 2. Non-Destructive Testing: These devices inspect parts without causing any damage.
  • 3. Time Efficiency: Quick and reliable inspection processes save time in quality assurance.
  • 4. Versatility: Suitable for a wide range of components, from simple shapes to complex geometries.

Applications Across Industries

Profile projectors from R B Metrology are used in industries such as:

  • • Automotive: Inspecting engine parts and transmission components.
  • • Aerospace: Measuring critical dimensions of aircraft parts.
  • • Manufacturing: Ensuring the consistency of mass-produced items.
  • • Toolmaking: Checking the accuracy of dies, molds, and cutting tools.

Most Popular Product

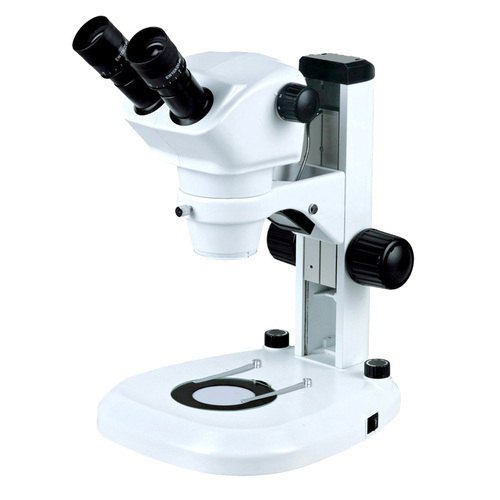

Stereo Microscope

View More

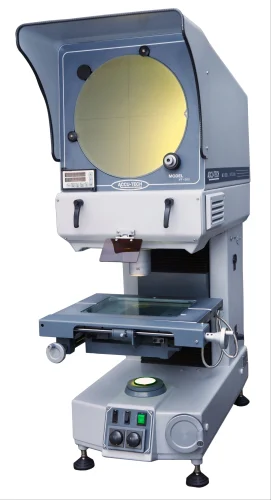

Optical Profile Projector

View More

Horizontal Profile Projector

View More

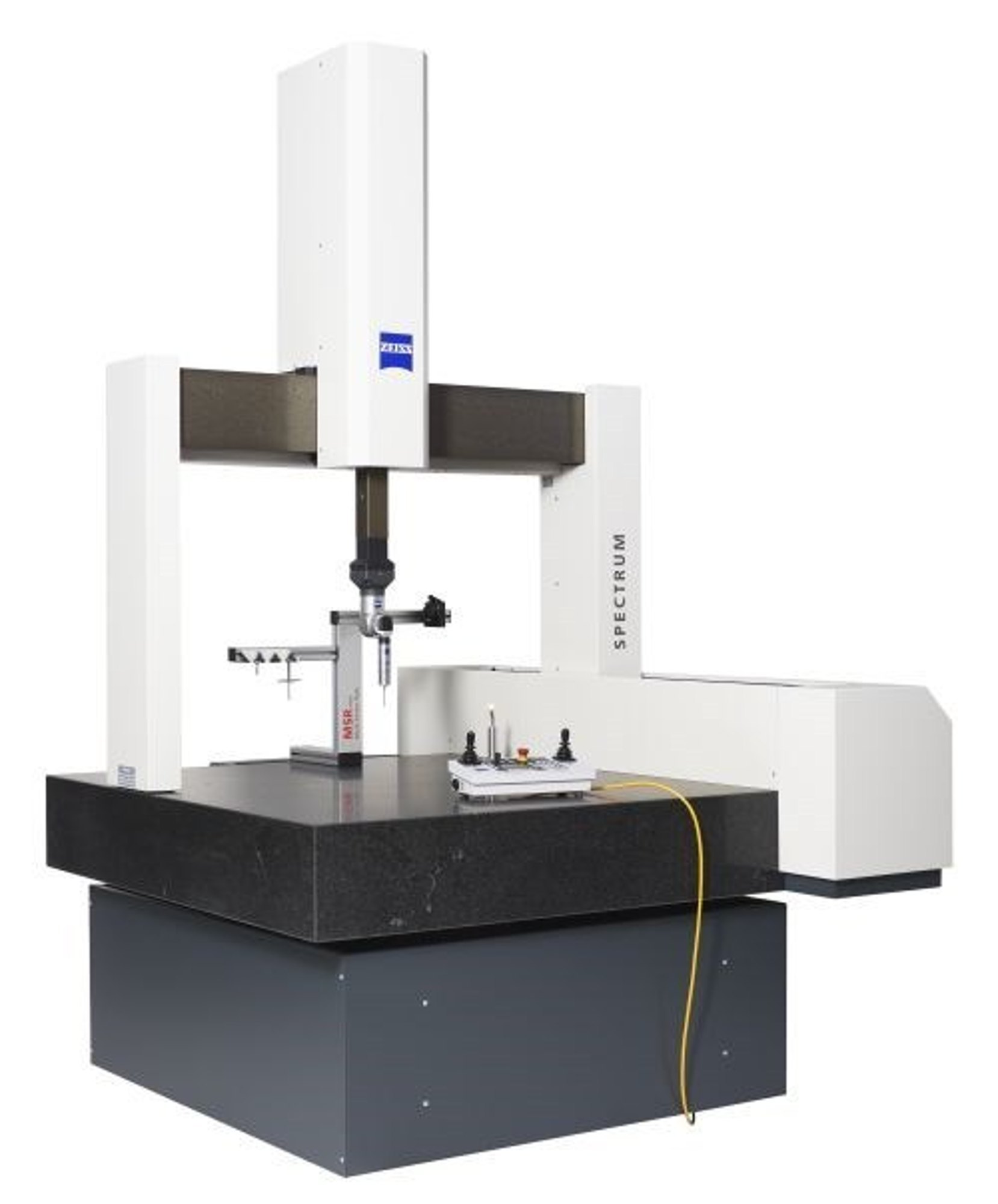

CMM Spectrum Model
